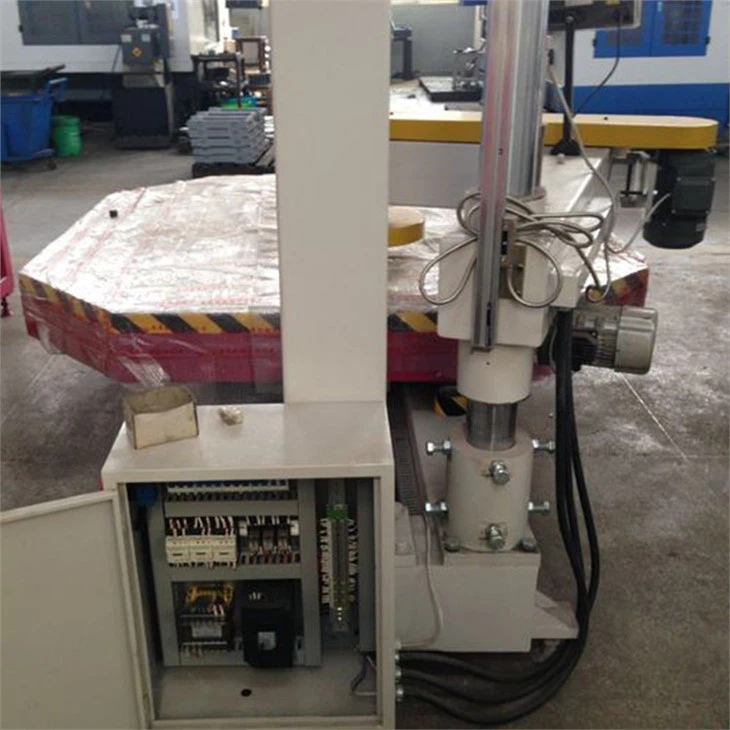

Full Automatic Bathtub Sawing Cutting Machine

Full automatic Bathtub sawing cutting machine is professional for bathtub edge cutting . it suits to edge trimming of bathtub of different sizes. General grinding wheel blade, tungsten carbide alloy saw blade and special diamond grinding wheel blade could be used, The process precision is high,which is the good choice for bathtub factory.

1 Size working table (L×W)…………………………2000×2000

2 Maximum distance between work table center to vertical arm………1500mm

3 Maximum distance between work table and pressure plate………….1120mm

4 Rotate speed of work table (adjustable)………………………………..0-2r/min

5 Maximum ascend and descend distance of the tumbler……………...50-400mm

6 Dimension of common used grinding wheel……………………………Φ400×Φ25.4mm

7 Rotate speed of main axis………………………………………………..3650 r/min

8watt of main motor .......... ………………………………………………………N=3KW

9 Motor power of work table………………………………………………..N=0.37KW

10 Power of the maximal rising height of tumbler………………………..N=0.37KW

11 Operation power…………………………………………………………0.4～0.6Mpa

12 Appearance dimension (L×W×H)...............................................3280×2400×2850mm

13 Machine bed weight…………………………………………………1300kg



FAQ



Q: Is your company a manufacturer?

A: Yes,we are. At the same time, we also agent other product brands.



Q: What is the guarantee for all the bathtub making line?

A: the core component is two years after loading. We will offer extra quick-wear parts.



Q: Can you come to our factory to help us to set up the whole making line?

A: Yes, we can. We can send our technicians to your factory. But you have to pay for their air tickets cost and hotel cost.
